Understanding Surface Roughness: Measurement, Charts, and Finish Symbols

Surface roughness influences the quality and performance of the produced goods. It is a crucial component of various processes of manufacturing. Surface roughness is measured to find ways to eliminate wear and enhance the functionality of the part. Therefore, engineers can make decisions to improve the quality of the product. They can also optimize their production processes by comprehending methods to access surface roughness.

Manufacturers like ProleanTech acquire uniformity across all components by using cutting-edge machinery to obtain Ra values and surface finish marks.

This guide explores the meaning of surface roughness, how it can be measured, and how its symbols can be interpreted in manufacturing processes.

What Is Surface Roughness?

The term surface roughness reflects the fine irregularities on the surface of a material during production. The relative smoothness of the surface of the profile. It is computed using the small variations in the actual shape of the surface. The surface is smoother when it deviates less from its actual shape, and the surface is rougher when it deviates more.

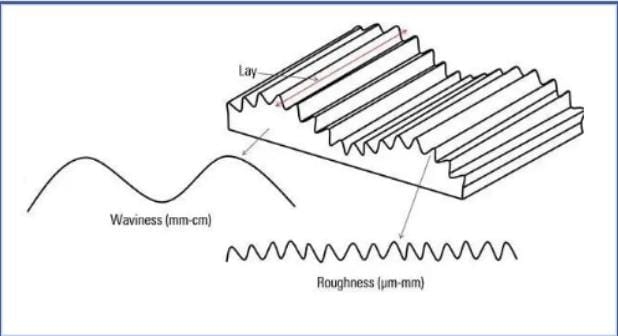

Elements of Surface Texture: Lay, Waviness, and Roughness

There are three main categories of factors that affect texture and surface roughness. These factors are material factors, environmental factors, and process factors.

• The qualities like hardness, grain structure, and ductility of material are included in material factors.

• Process factors include feed rate, the cutting tool shape, cutting speed, and the type of machining process employed.

• Environmental factors include temperature and humidity levels throughout the production process. These factors can affect the behavior of the material and, therefore, result in smooth or rough surfaces.

Surface roughness has important ramifications in many applications. For instance, the biomedical field, the electronics industry, and mechanical engineering. Therefore, it is essential to comprehend and manage surface roughness in many fields of science and technology.

How Surface Roughness Is Measured

Surface roughness is commonly measured in “average roughness,” or “Ra,” which is a commonly used unit of measurement. Ra is a surface’s computed mean of its peaks and valleys.

A surface is smoother when its Ra value is lower because there is less variance between its peaks and troughs. For instance, a laptop’s touchpad and a Lego block will both have low Ra values.

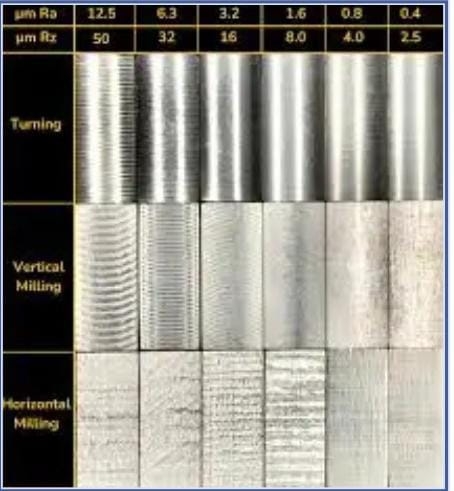

Examples of Different Surface Finishes on Metal Samples

Surface Roughness Parameters

• Ra or Center Line Average (CLA) is the test’s overall numerical average of all the peaks and valleys.

• Rz is the mean of the lowest troughs and highest peaks in a row. Typically, this is done for the five largest variances, after which an average is determined.

• Rp is the computed separation between the mean line inside the evaluation length and the tallest peak on the profile.

• Rv is the computed separation between the mean line inside the evaluation length and the lowest valley in the profile.

• Rmax is the largest consecutive deviation, computed across the assessment period, between the highest peak and the lowest valley.

• RMS is the root mean square average of the deviation of profile height from the mean line, computed throughout the assessment period.

Measurement Methods

The measurement methods fall into two general categories: contact methods and non-contact methods.

1. Contact methods used a probe or stylus that interacts with the surface being measured. As the probe travels across the surface and comes into contact with surface imperfections, its vertical displacement is noted. Stylus profilometry is one of the most often used contact techniques.

2. Physical contact between the measuring device and the surface is not necessary for non-contact surface roughness measurement techniques. These techniques usually use electromagnetic or optical principles to gather surface data. Atomic force microscopy and optical profilometry are two popular non-contact techniques.

Surface Roughness Chart Explained

A surface roughness chart is a visual aid for comparing and interpreting surface textures. Standard Ra (roughness average) values are provided. One measure of surface roughness is Ra, or Roughness Average, which is commonly expressed in micrometers (µm) or micro-inches (µ-in). In the industry, the words “micron” and “micrometre” are frequently used interchangeably. For comparison, 40 micro-inches is about equivalent to one micrometer.

Surface Finish Grades and Roughness Comparison Chart

Good surface roughness is established based on the requirements of your project or the demands of parts or components. The following surface roughness averages can be attained with CNC machining:

• 3.2 μm Ra

• 1.6 μm Ra

• 0.8 μm Ra

• 0.4 μm Ra

These figures assist in estimating the approximate grade needed for particular uses, weighing cost, functionality, and look.

Surface Finish Symbols and Their Meaning

The symbols of roughness finish are shown in the table below with their meanings:

Symbol/Notation	Meaning/Lay Type	Description
∠	Basic surface finish	Indicates a surface texture requirement; no specific process is mentioned.
∠–	Material removal required	Surface must be machined or otherwise finished to meet the roughness requirement.
∠o	No material removal	Surface should remain as-formed (casting, forming).
∠ + Number	Surface roughness limit	Number specifies Ra value in µm (e.g., ∠ 1.6 = Ra 1.6 µm).
=	Parallel lay	Tool marks or grooves running parallel to the surface.
⊥	Perpendicular lay	Tool marks running perpendicular to the main surface or reference line.
X	Cross lay	Crossing tool marks, often from multi-directional machining.
M	Multidirectional lay	Grooves run in many directions, typical of lapping or polishing.
C	Circular lay	Concentric circular patterns, often from turning or circular machining.
R	Radial / Longitudinal lay.	Grooves running parallel to the surface, created by cutting tools.

Engineers use these surface finish symbols for drawings. These symbols show how smooth ot textured the surface of the part should be. In addition, the provision of rough grades for interpretation in line with international standards such as ASME B46.1 and ISO 1302.

Conclusion

Surface roughness, finish, and roughness grades are important for precise manufacturing. The accurate surface roughness measurement ensures the part functionality. Moreover, the surface roughness chart can help to choose the right finishing method. However, the product reliability and performance are improved through working with suppliers like ProleanTech by ensuring quality and dependable surface finishes.
